Fabriation Division
We bring:
- Over 40 years’ experience in the Engineering and Mining sectors
- Competent and efficient management structures
- BBBEE Compliance
- Extensive Research & Development focus
- 3D modelling Design and drafting capability
What we do:
Material Handling

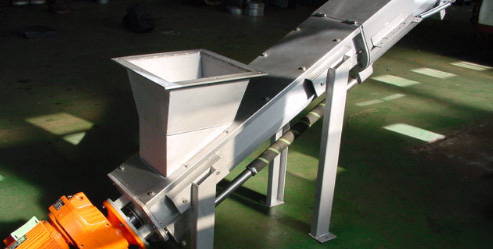

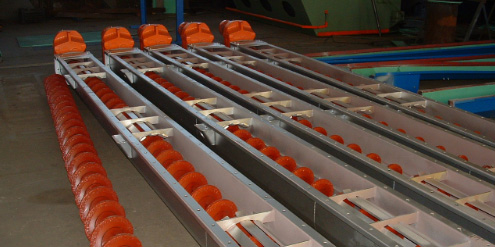

Shaftless Screw Conveyor
The Shaftless Conveyor has the following benefits:
- No hanger bearings means low maintenance
- No end bearings means no gravity schutes
- No centre shaft means high filling rate
- High filling rate means low rpm which means low maintenance
- Sealed construction means no dust
Verto Lift
Special Vertical Conveyors offer new solutions to vertical conveying:
- Compact Installations
- Minimum Wear
- Reduced Energy Consumption
- Vertical Conveying at Low Operational Speeds
- Vibration Free
- Minimum Noise

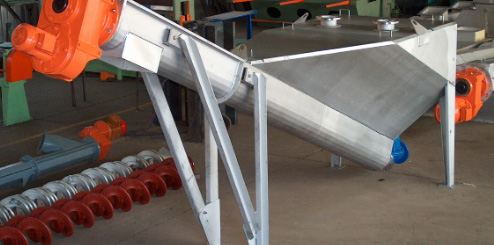

The Classifier
The Classifier operates on the principle of minimum inlet turbulence combined with optimum settling thereby extracting maximum solids.
Solids settle to the bottom of the trough and are extracted using a shaftless spiral operating at very low RPM. Spirotech also have a specially designed outlet wier and all classifiers have quick release lids.

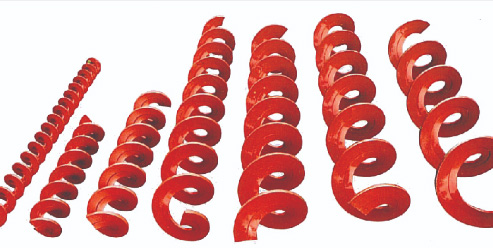

Shaftless Spiral
The Shaftless Spirals are manufactured from the highest quality High Tensile Steel and can be used in extremely high torque applications. For abrasive conditions Spirals can be treated by means of hard facing, nitriding, ceramic lining and various well recognised abrasion resistant techniques.
Spirals can offer design and turnkey solutions to all materials handling problems.

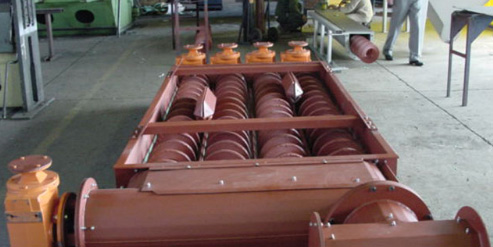

Live Bottom
The Live Bottom offers the following:
- Prevents bridging or arching in storage hoppers
- Shaftless spirals ensure true live bottom characteristics with no clogging
- Spirals are manufactured in left and right hand configurations
- Spirals can be manufactured with variable pitch to ensure mass flow characteristics
- Each spiral is driven individually
- No hanger bearings or end bearings
Dewatering Press
The Dewatering Press combines the efficiency of the conveying system with the effectiveness of the dewatering compaction zone.
Some advantages are:
- The shaftless spiral ensures no tangling and plugging of stringy materials
- An automatice spray system to keep the screen clean
- Adjustable tension on discharge door
- Variable screen apertures to cater for all product sizes
- Highly efficient dewatering
- Primary drainage zone
Channel Screen
Our Channel Screen range is unique and designed for flexible and simple solutions to effluent management. A significant feature is the combination of functions incorporated in one robust and space saving unit, where maintenance and running costs are minimised.
Volumetric Coal Feeders
- Gravimetric feeders
- Volumetric feeders
- Automatic Sampling Systems
- Batch Mixers
- Belt Scraping Systems

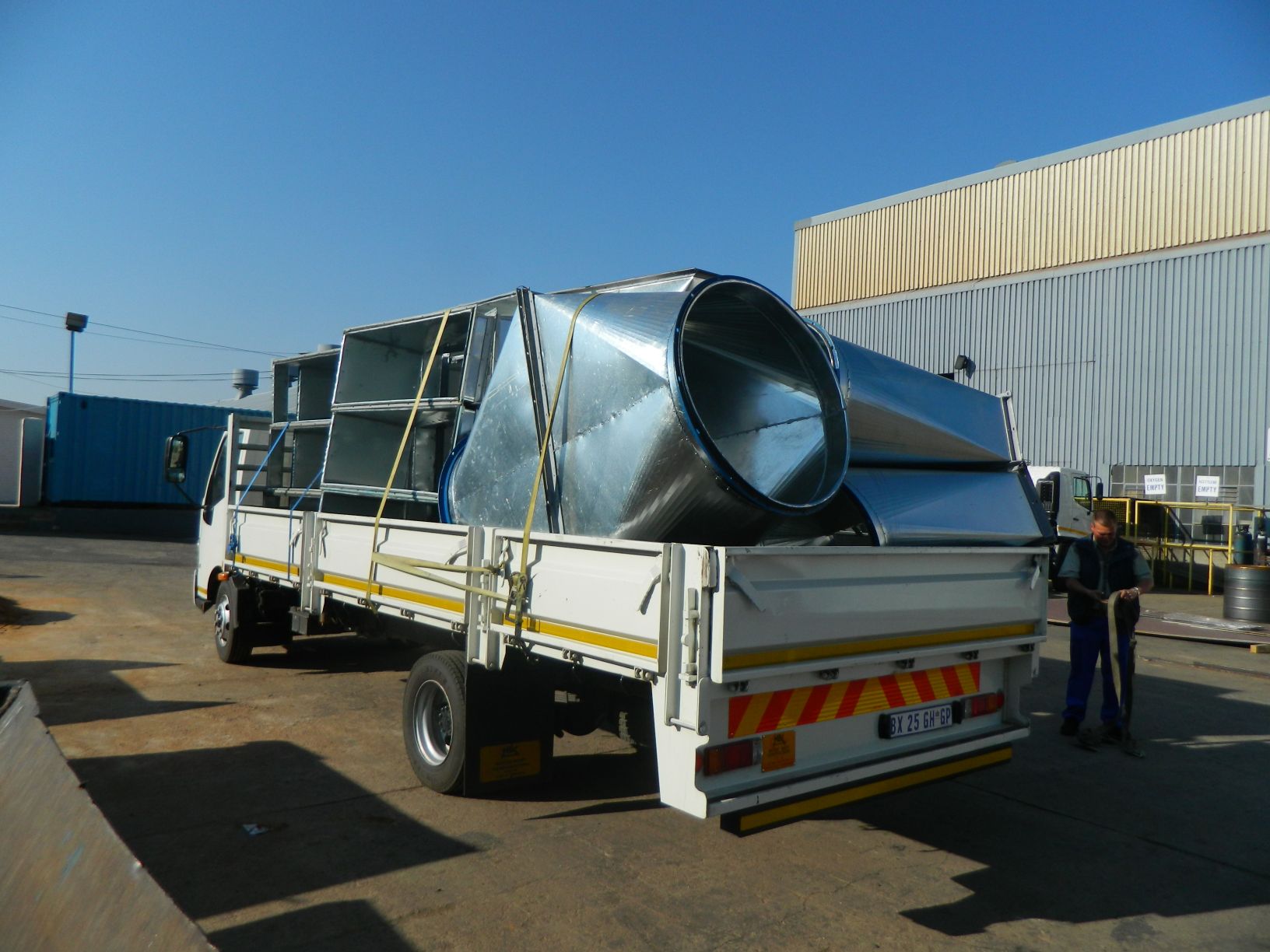

Mining Ventilation
Ventilation And Associated Services
The full range of ventilation products are available including
- high pressure ventilation doors

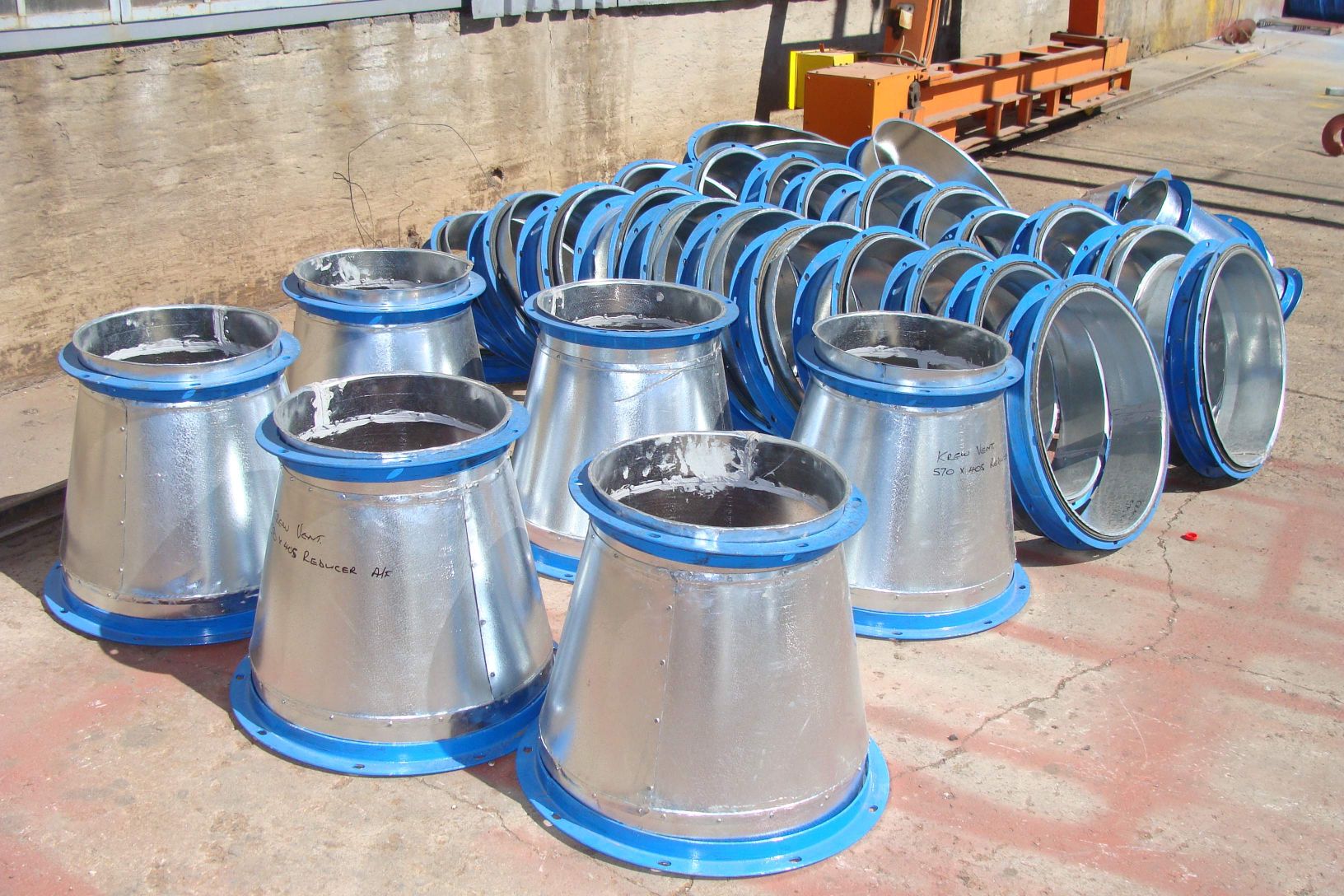

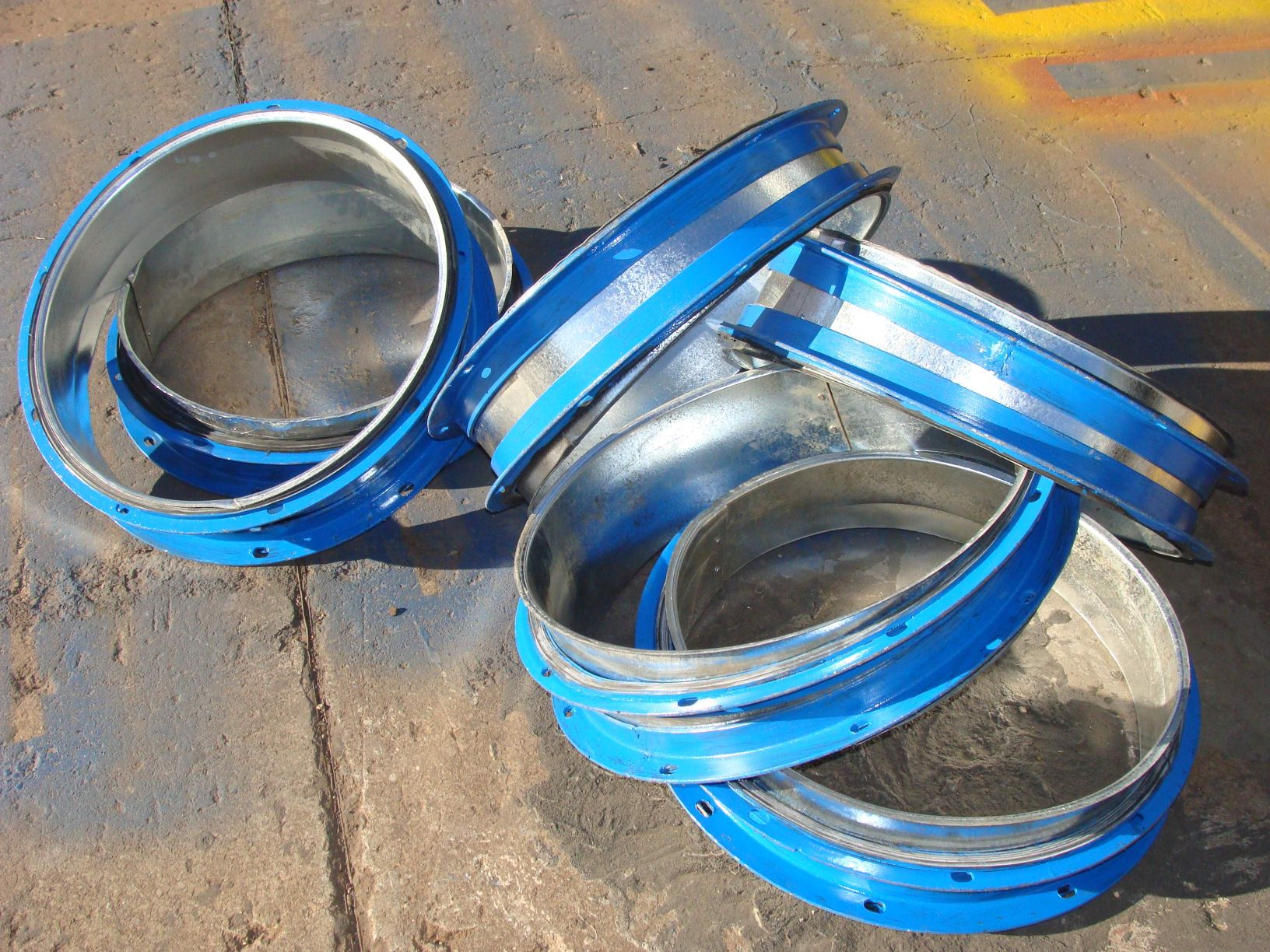

- ventilation ducting

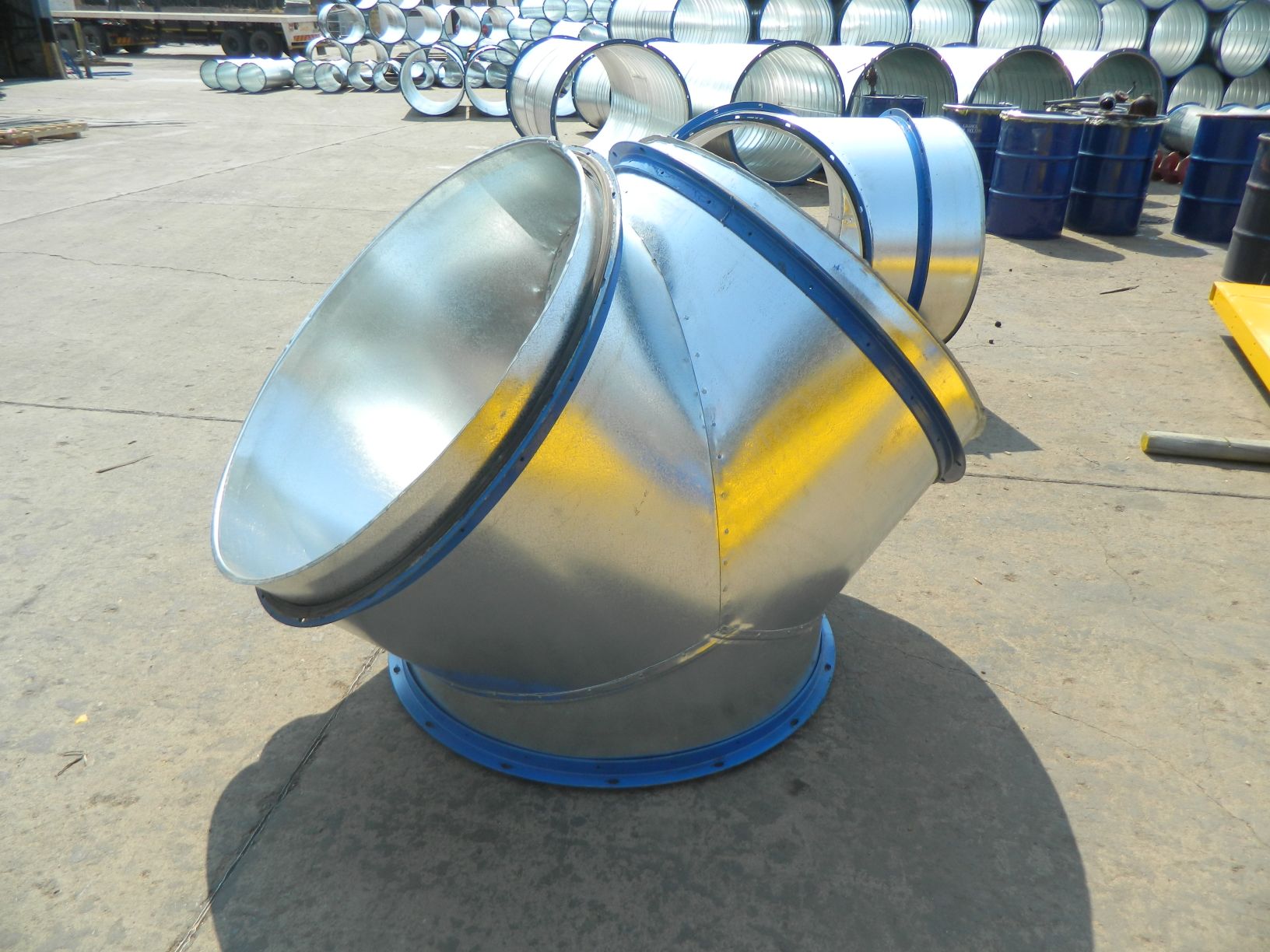

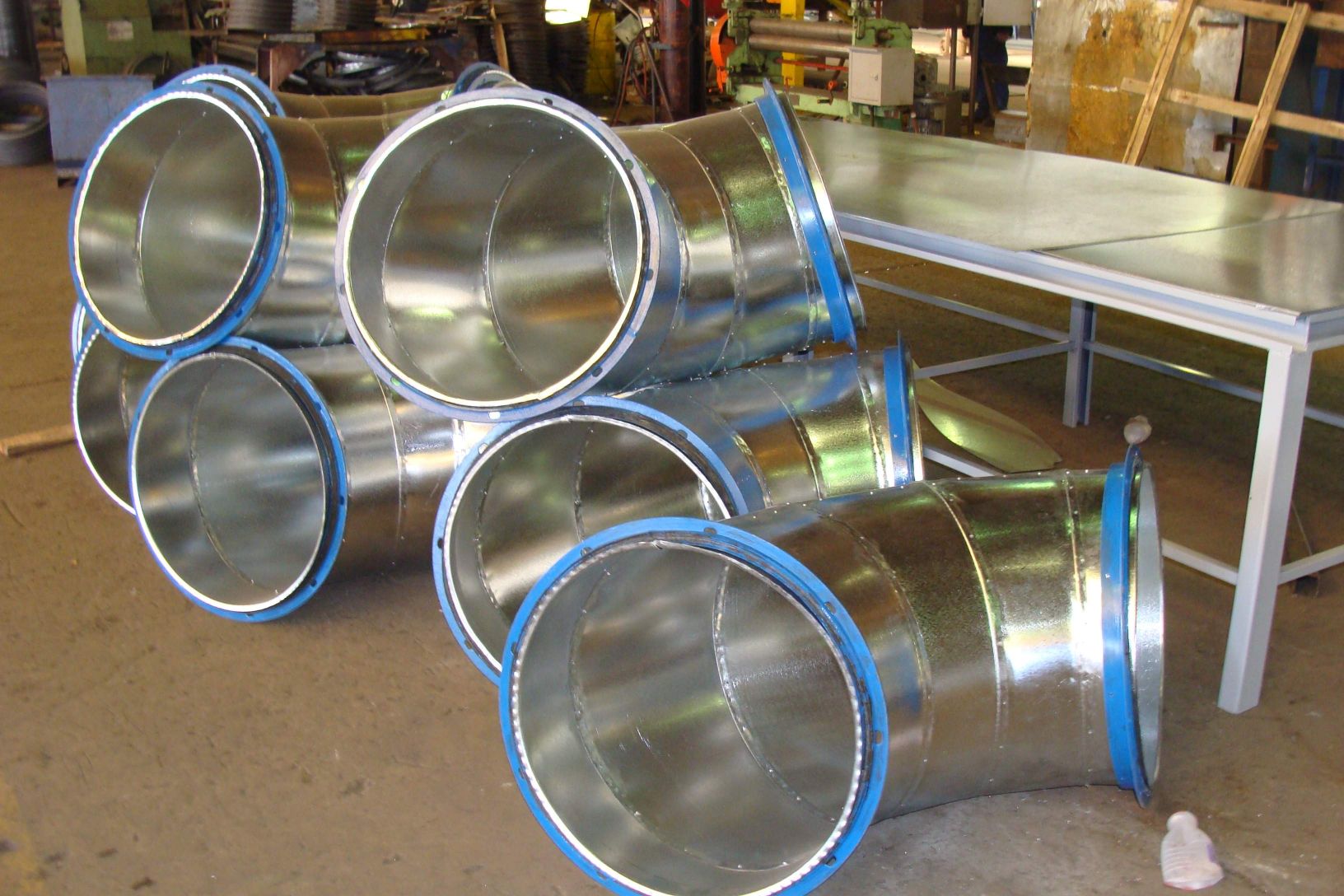

- ventilation bends

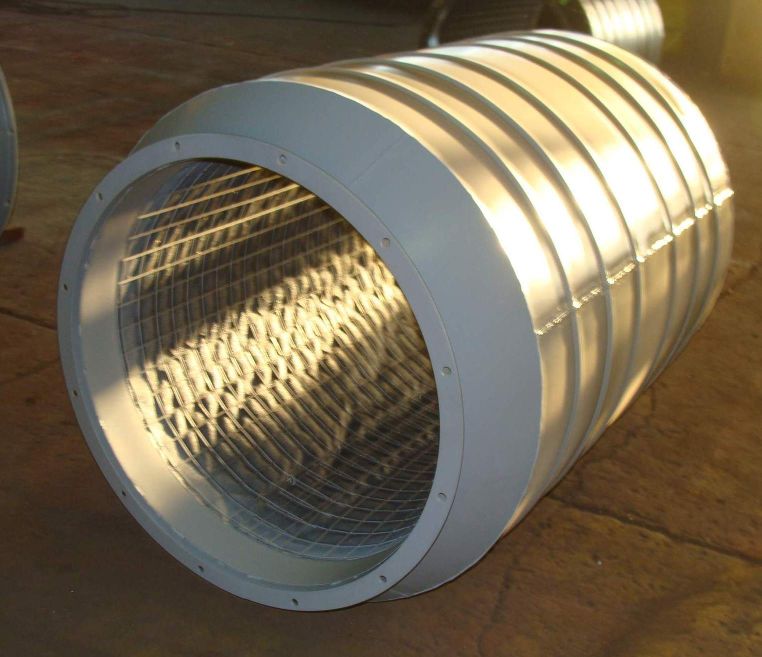

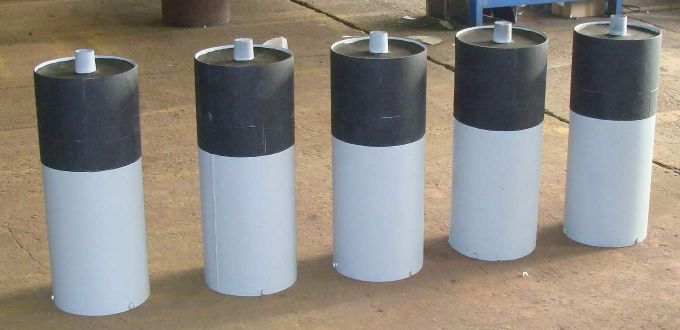

- silencers

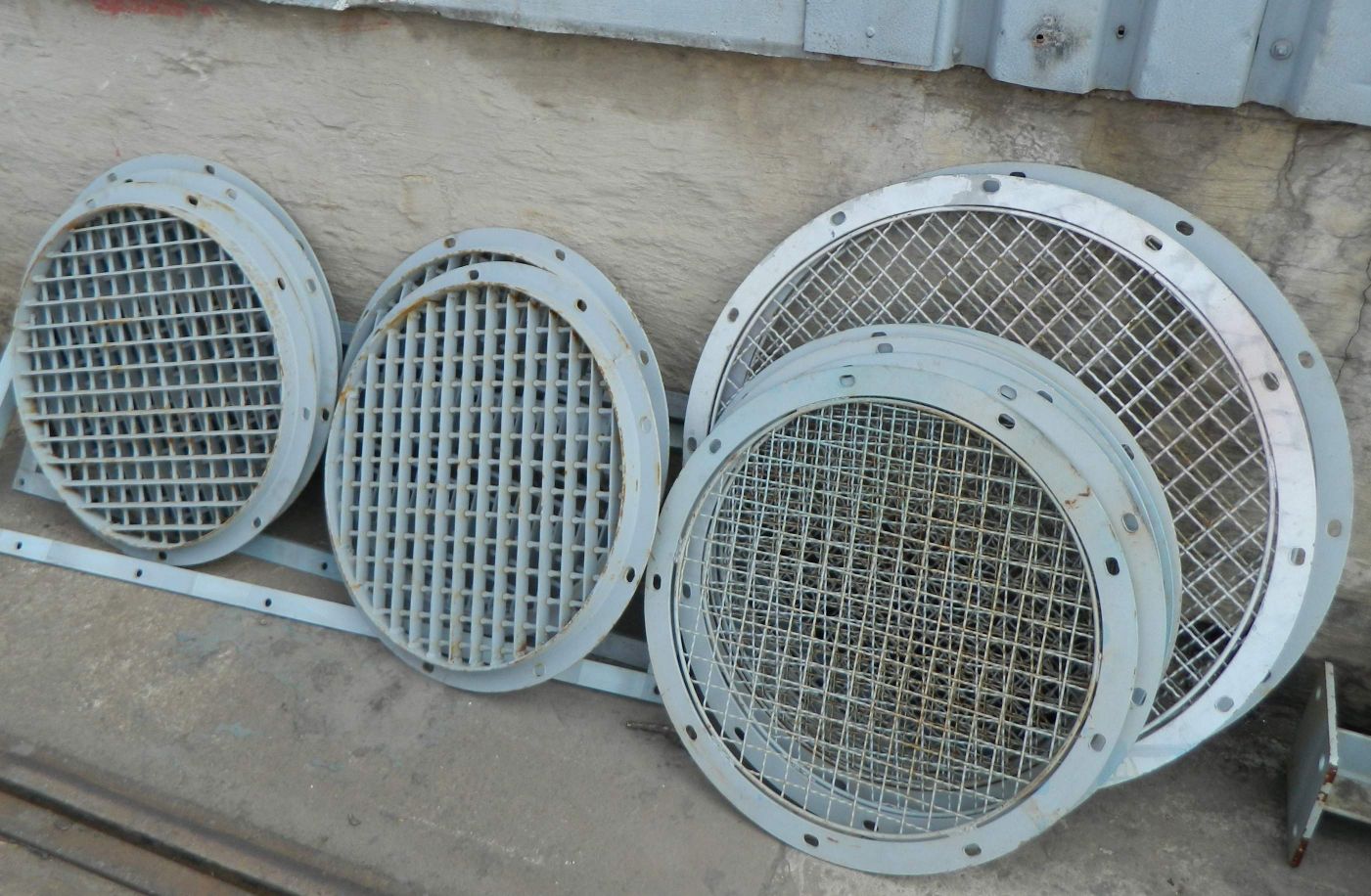

- protection pieces
- blast sprays

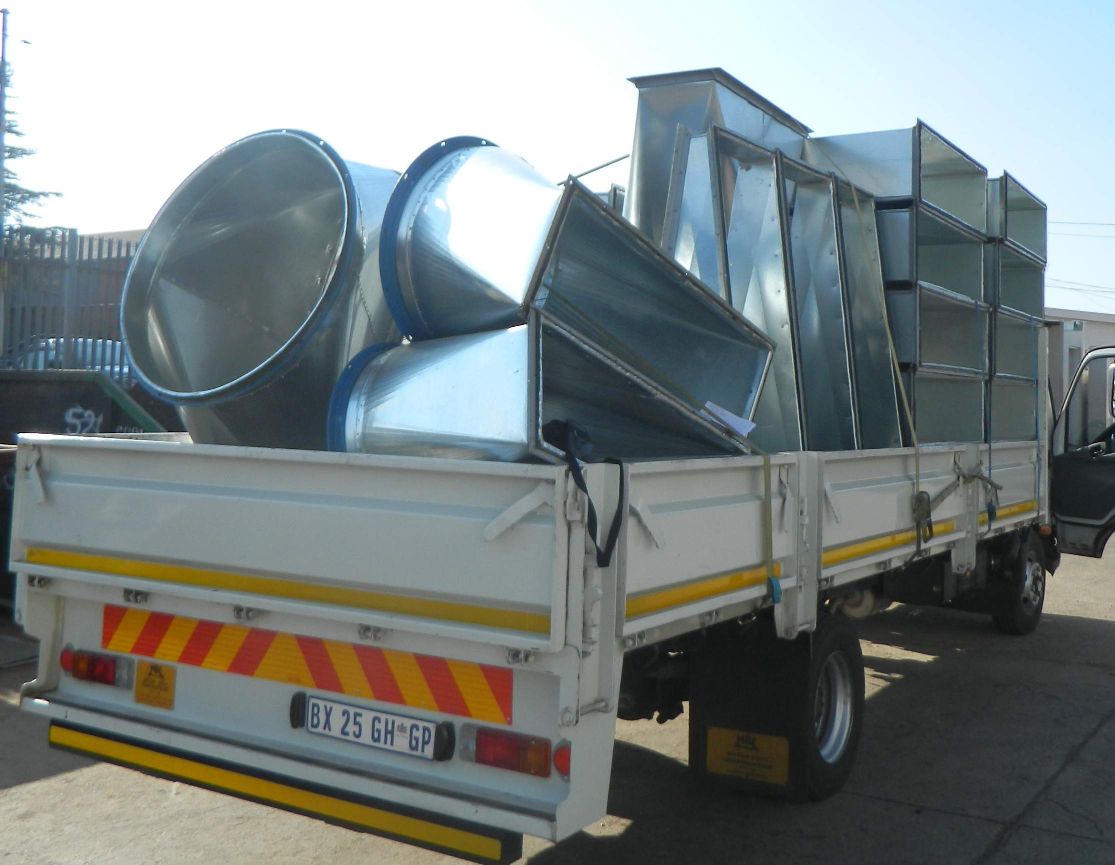

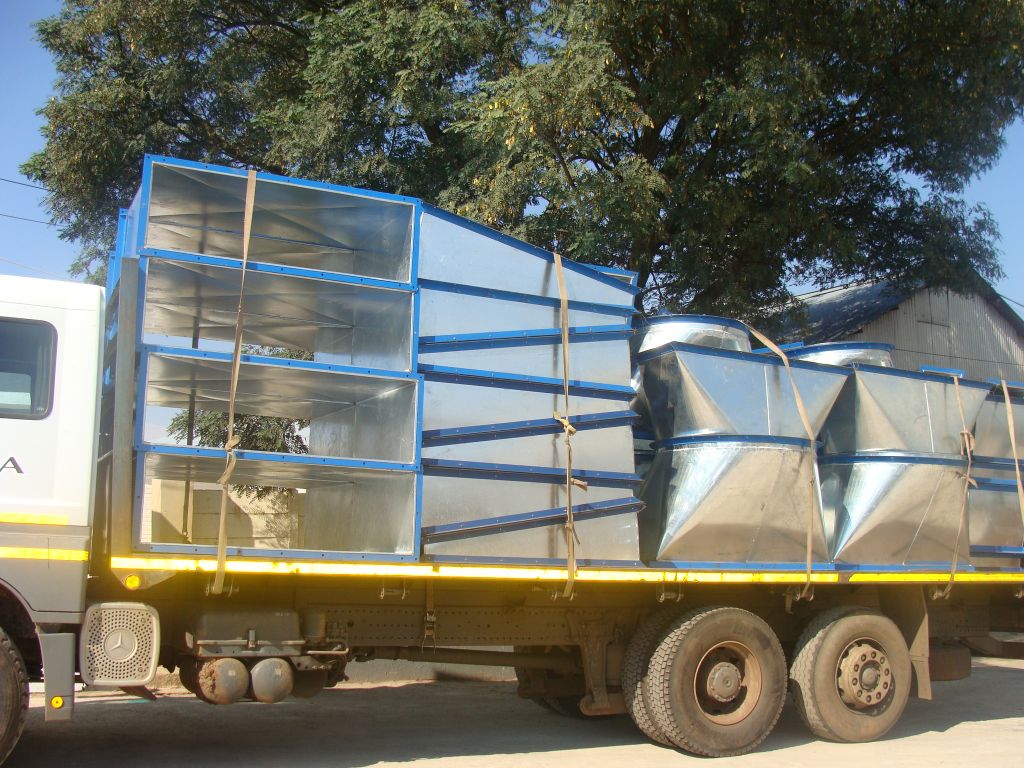

- rectangular ducting

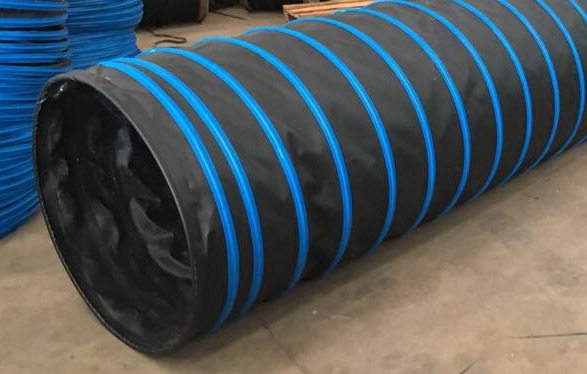

- flexible PVC force and exhaust ducting

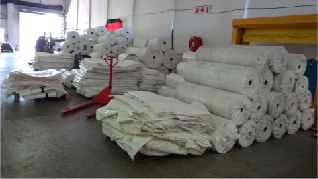

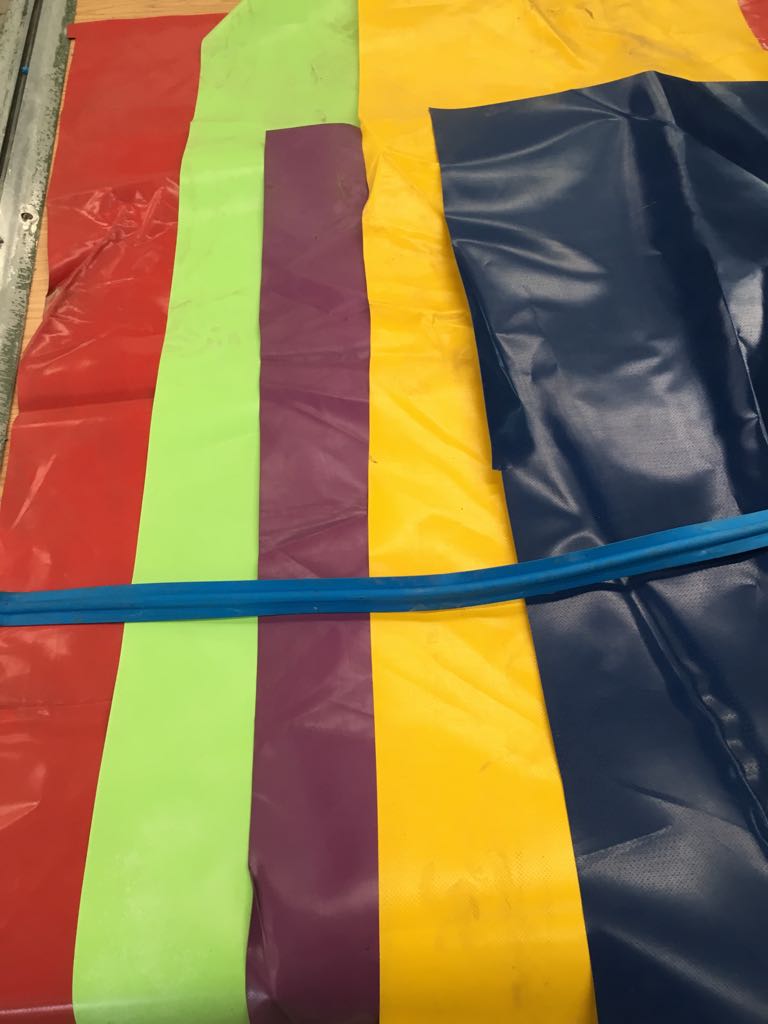

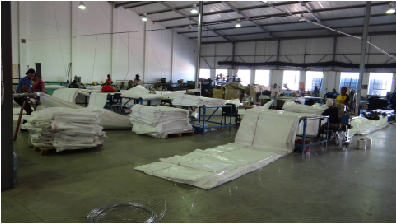

- polypropylene ventilation curtains and brattices
We also manufacture fully automated high pressure and low pressure ventilation doors and have also designed and developed an emergency toilet for the underground refuge chambers

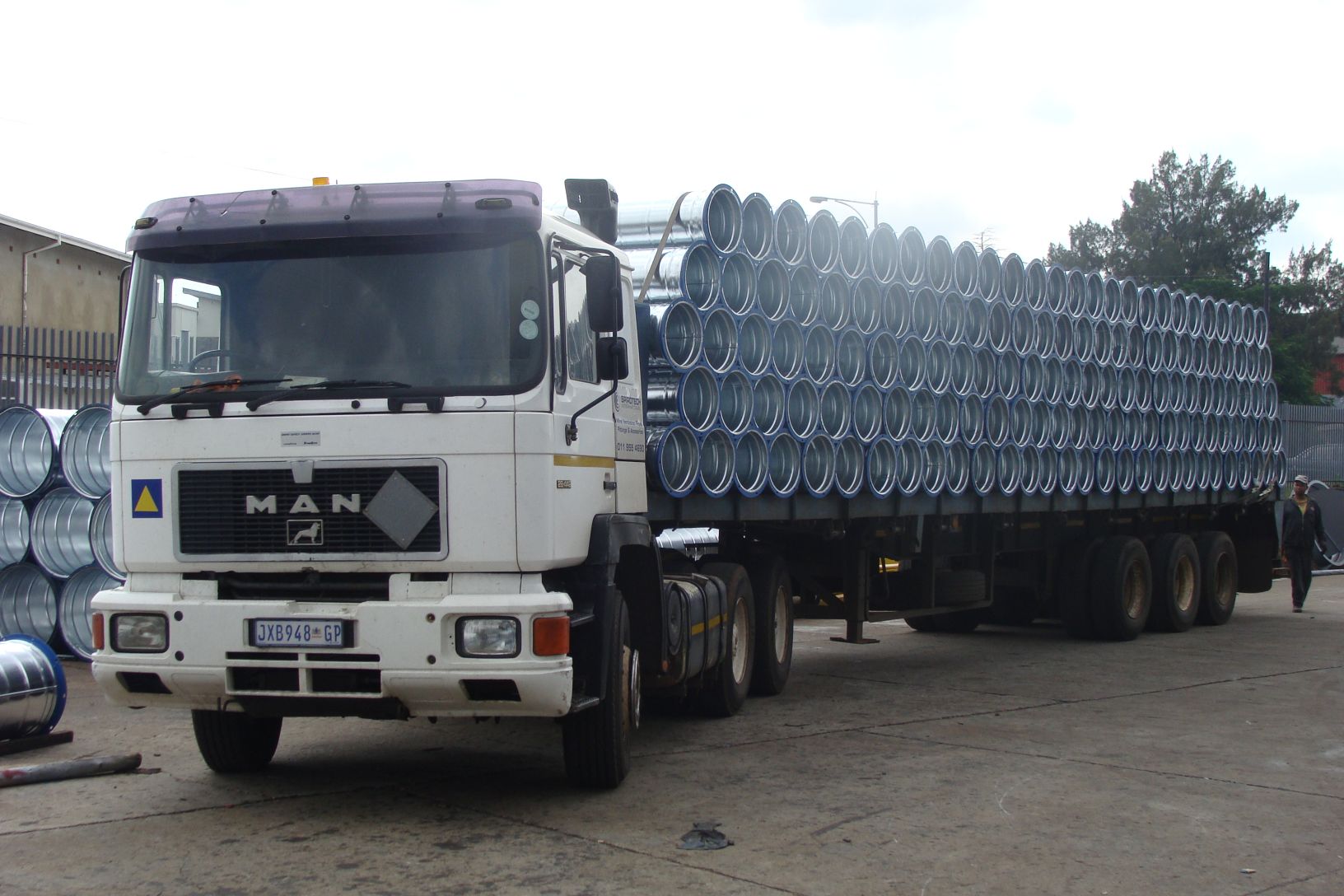

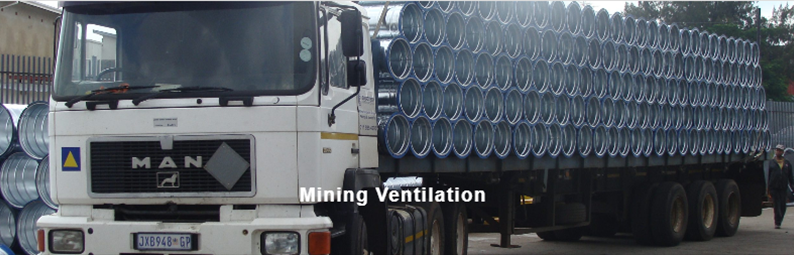

Ventilation Ducting

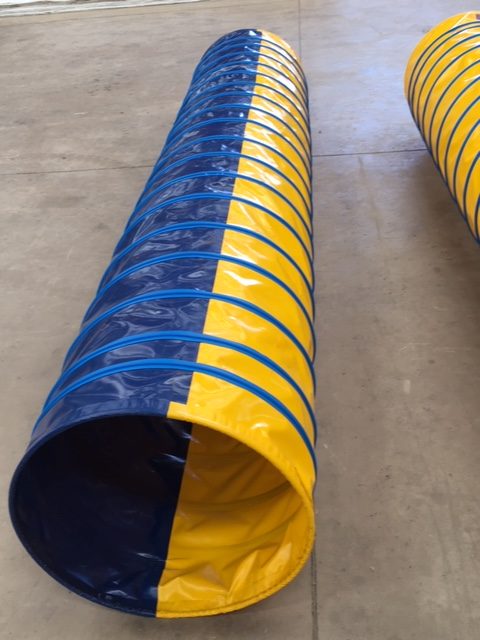

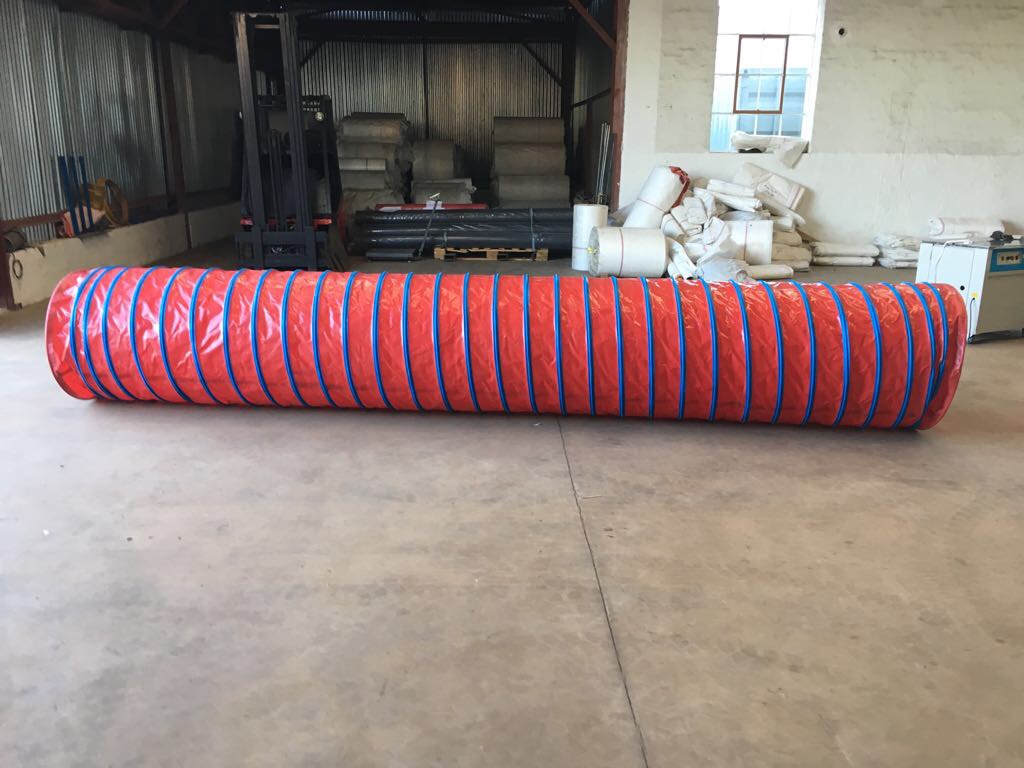

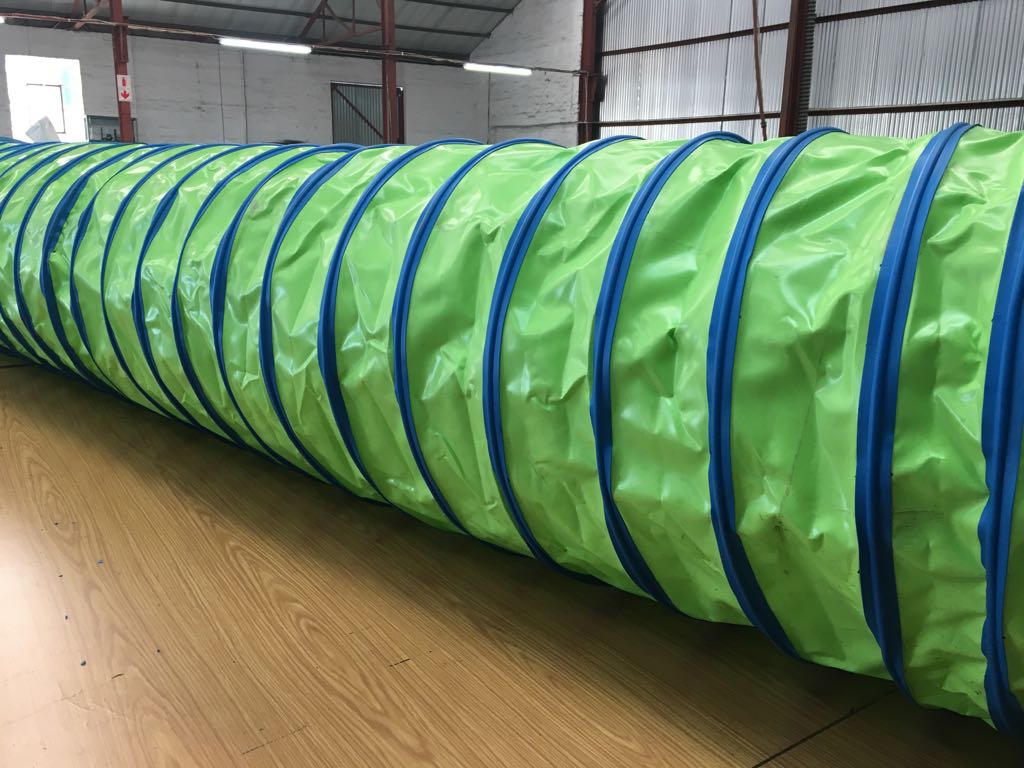

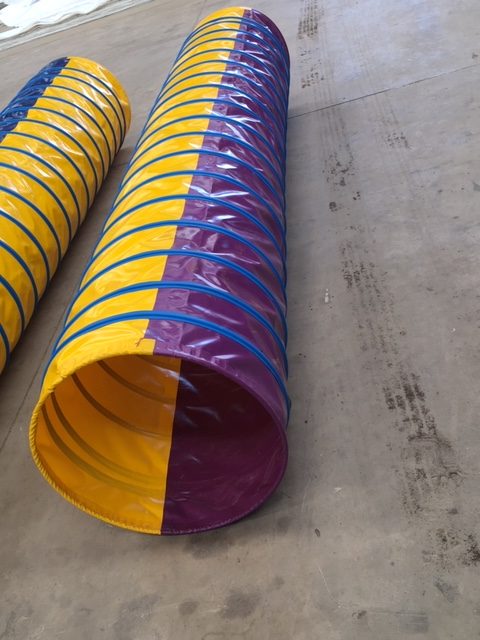

Doggie Agility Tunnels
Brochure PVC Division
Brochure PVC Hose
Brochure PVC Ventilation Ducting
Brochure PVC Curtains & Brattices

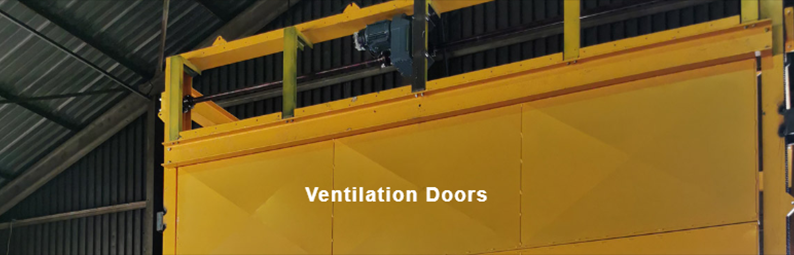

Ventilation Doors

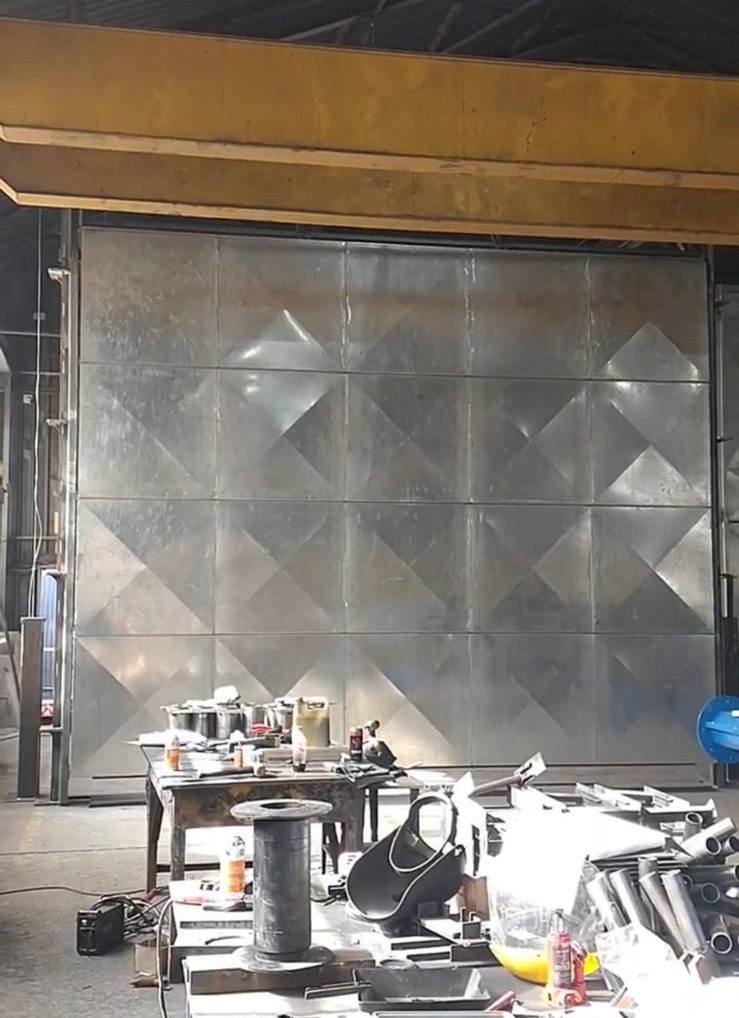

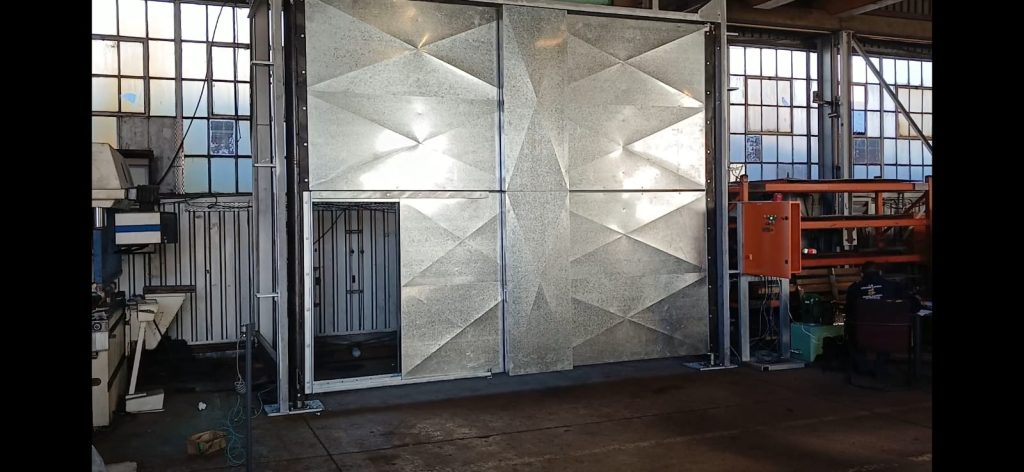

Roll up ventailation doors
We have been manufacturing and have successfully commissioned large automated roll up ventilation door for the past 15 years. These doors have been installed in numerous applications underground in platinum, gold, copper and diamond mines. We have manufactured and successfully commissioned over 100 automated ventilation doors and have an extremely strong track record in this field.
In some cases the doors have done over 25 000 operations with minimal maintenance.

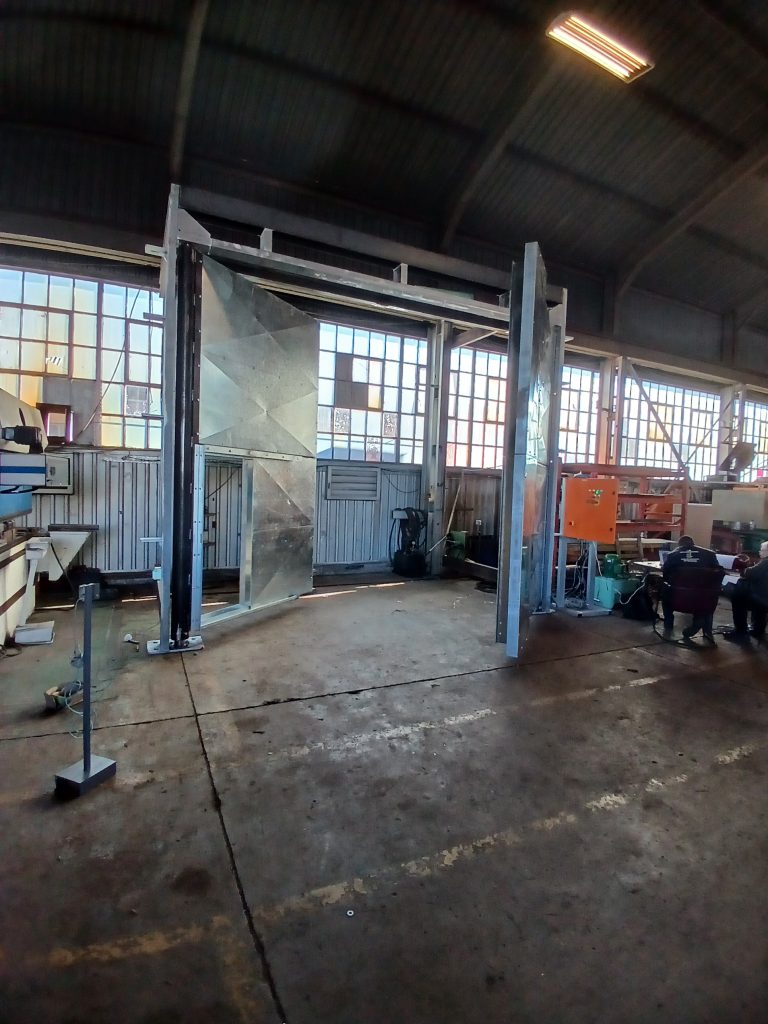

Z Type Ventilation Doors

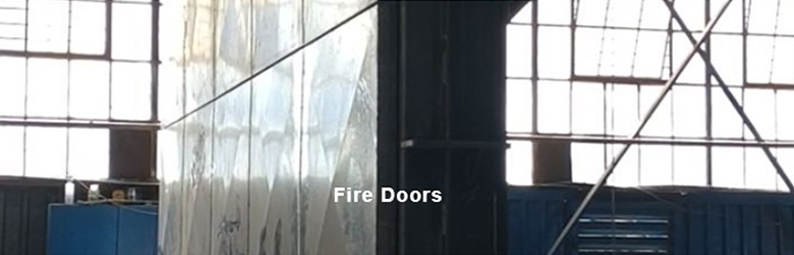

Fire Doors

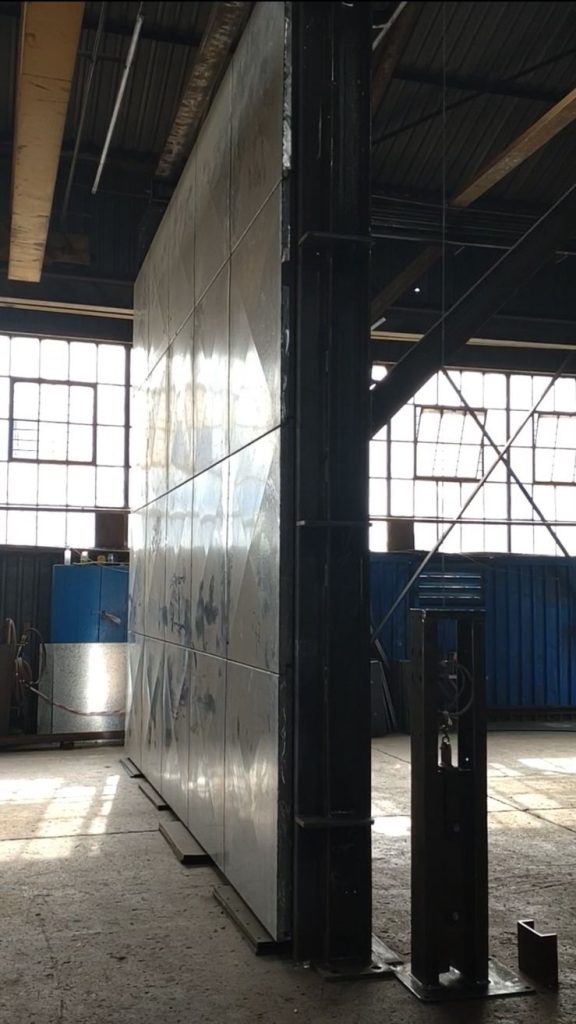

Roll Up Fire Doors
For over 15 years, we have been manufacturing and successfully installing large automated fire doors in a variety of demanding environments, including platinum, gold, copper, and diamond mines. With over 100 installations to date, We have built a proven reputation for reliability and performance in the industry.
In many instances, these doors have completed more than 25,000 operations with minimal maintenance required.
Roll Up Type Fire Doors
